Breaking Down the 4 Different Types of Plate Heat Exchangers

In industrial applications where efficient heat transfer is crucial, plate and frame heat exchangers offer a versatile and effective solution. These systems are designed to transfer heat between fluids in a compact and efficient manner. This blog will explore the four primary types of plate heat exchangers, providing insights into their structures, advantages, and ideal use cases.

1. Gasketed Plate Heat Exchangers

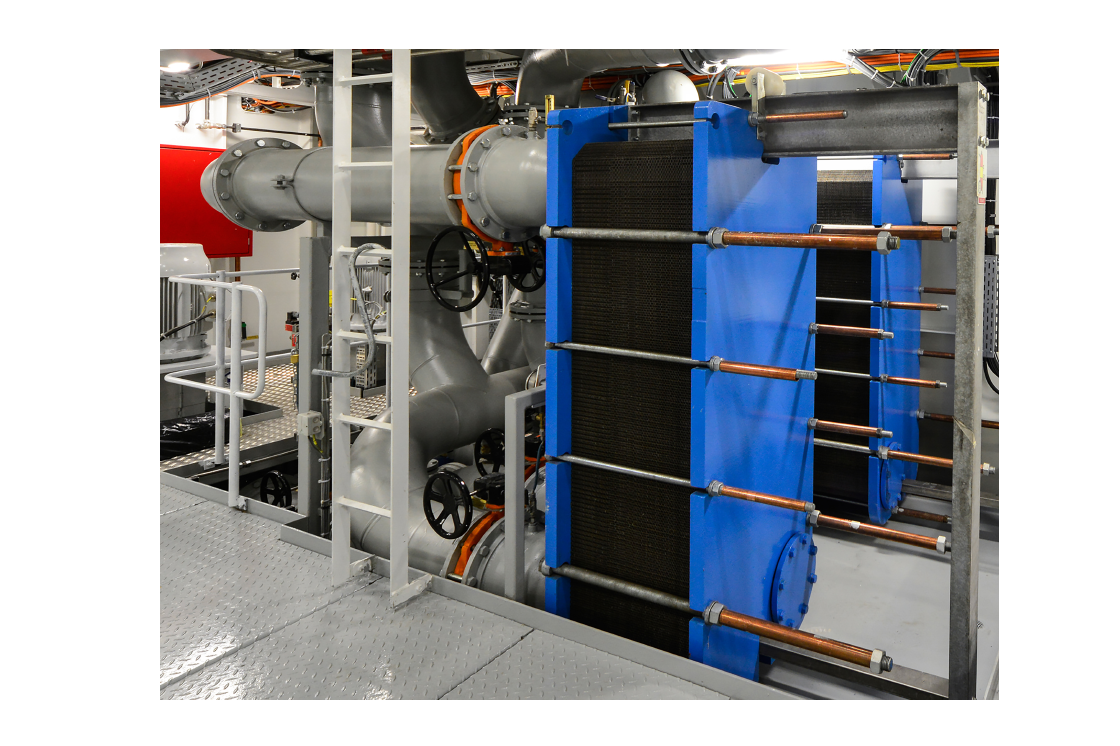

Gasketed plate heat exchangers are one of the most versatile and widely used heat transfer devices. They consist of a series of thin, flat plates stacked together with gaskets between them.

• Design and Structure: The key feature of gasketed plate heat exchangers is their use of elastomeric gaskets that seal the individual plates, creating a flow channel for the fluids. This design allows for easy disassembly, making maintenance and cleaning straightforward. The plates are often corrugated to enhance the turbulence and efficiency of heat transfer.

• Applications: These heat exchangers are ideal for applications where the fluids are not highly corrosive and the pressure requirements are moderate. Commonly used in HVAC systems, food and beverage industries, and chemical processes, they offer flexibility and adaptability.

• Advantages: The primary advantages include high heat transfer efficiency, a compact footprint, and the ability to expand or modify the unit by adding or removing plates. The gasketed design allows for thermal expansion and contraction, which can be beneficial in various operating conditions.

• Considerations: Gaskets can be susceptible to degradation from harsh chemicals or high temperatures, which may limit their use in some industrial environments. Regular maintenance is necessary to ensure the integrity of the gaskets and prevent leaks.

2. Welded Plate Heat Exchangers

For more demanding conditions, welded plate heat exchangers provide a robust solution. These units are designed to handle high pressures and aggressive chemicals, thanks to their welded construction.

• Design and Structure: In welded plate heat exchangers, the plates are permanently bonded through welding, eliminating the need for gaskets. This construction method enhances the unit’s durability and resistance to high temperatures and pressures. The welded plates are often made from stainless steel or other high-grade materials to withstand harsh operating conditions.

• Applications: Welded plate heat exchangers are suited for applications in industries such as petrochemical, pharmaceutical, and power generation, where high performance and resistance to aggressive fluids are required. They are effective in scenarios involving extreme temperatures and pressures.

• Advantages: The welded construction ensures a leak-proof operation and allows the exchanger to handle corrosive and high-pressure fluids efficiently. They also offer a compact design, which is beneficial in space-constrained installations.

• Considerations: While offering high durability, welded plate heat exchangers lack the flexibility of gasketed models. They are not easily modified or expanded, and their initial cost can be higher. Repairs and maintenance can be more challenging due to the permanent nature of the welds.

3. Brazed Plate Heat Exchangers

Brazed plate heat exchangers are known for their compact size and high efficiency. They are often used in applications where space is limited and high thermal performance is required.

• Design and Structure: These heat exchangers are constructed by brazing the plates together with a filler metal, creating a strong, permanent bond. This method eliminates the need for gaskets and provides a robust structure capable of handling high pressures and temperatures.

• Applications: Brazed plate heat exchangers are commonly employed in refrigeration, HVAC systems, and industrial processes where efficiency and space-saving are critical. They are also suitable for applications involving both heating and cooling processes.

• Advantages: The brazed design offers excellent thermal performance and resistance to leakage. The compact design allows for efficient use of space, making it ideal for applications with limited installation areas.

• Considerations: The primary drawback is the higher cost compared to gasketed heat exchangers. Additionally, the permanent nature of the brazed joints means that modifications or repairs are difficult, potentially increasing downtime if maintenance is needed.

4. Semi-Welded Plate Heat Exchangers

Semi-welded plate heat exchangers offer a hybrid approach, combining elements of both gasketed and welded designs. This type is particularly useful in processes that involve both aggressive and non-aggressive fluids.

• Design and Structure: In semi-welded plate heat exchangers, the plates in contact with aggressive fluids are welded, while the remaining plates use gaskets. This combination provides a balance between durability and flexibility. The design allows for easier maintenance and adaptation compared to fully welded models.

• Applications: These heat exchangers are used in chemical processing, pharmaceuticals, and food and beverage industries, where both aggressive and non-aggressive fluids are handled. They are also suitable for applications with moderate pressure and temperature requirements.

• Advantages: The semi-welded design allows for the handling of aggressive fluids without compromising on the ease of maintenance and flexibility. This makes them a versatile option for a range of industrial applications.

• Considerations: While offering a compromise between durability and flexibility, semi-welded plate heat exchangers may not be as efficient as fully brazed or gasketed models in specific applications. Their hybrid design might require careful consideration of the fluids being processed to ensure optimal performance.

Conclusion

Choosing the right type of plate and frame heat exchanger depends on the specific requirements of your application, including the nature of the fluids, temperature and pressure conditions, and maintenance needs. Each type—gasketed, welded, brazed, and semi-welded—offers distinct advantages and considerations. By understanding these differences, you can select the most suitable heat exchanger for your process, ensuring efficient and reliable heat transfer products in your operations.
